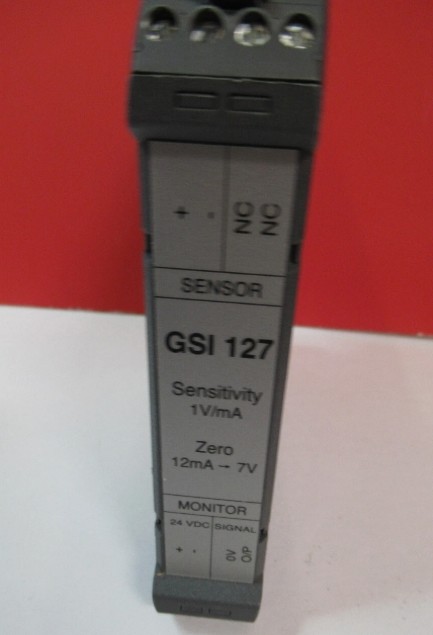

GSI127 244-127-000-017 A1-B02 Galvanic Separation Unit

GSI127 244-127-000-017 A1-B02 Galvanic Separation Unit

Features:

• Power supply for sensors and signal conditioners with a current output or a voltage output

• 4 kVRMS galvanic separation between the sensor side and the monitor side

• 50 VRMS galvanic separation between the power supply and the output signal (floating output)

• High rejection of frame voltage

• µA to mV transfer function for current-signal transmission over longer distances

• V to V transfer function for voltage-signal transmission over shorter distances

• Ex certified for use in potentially explosive atmospheres (hazardous areas)

• Compatible with industry standard IEPE (integrated electronics piezo electric) vibration sensors

Description:

The GSI127 galvanic separation unit is a versatile unit that can is used for the transmission of highfrequency AC signals over long distances in measurement chains using current-signal transmission or as a safety barrier unit in measurement chains using voltage-signal transmission. More generally, it may be used to supply any electronic system (sensor side) having a consumption of up to 22 mA.

The GSI127 also rejects a large amount of the frame voltage that can introduce noise into a measurement chain. (Frame voltage is the ground noise and AC noise pickup that can occur between the sensor case (sensor ground) and the monitoring system (electronic ground)). In addition, its redesigned internal power supply results in a floating output signal, eliminating the need for an additional external power supply such as an APF19x.
