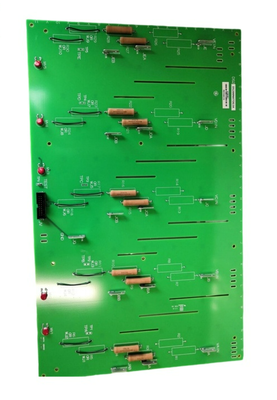

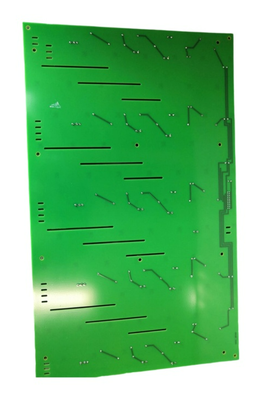

DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board

  • DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board
  • DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board
Luogo di origine U.S.A.
Marca General Electric
Certificazione Certificate of Origin
Numero di modello DS200NATOG2A
Quantità di ordine minimo 1 pz
Prezzo $3500
Imballaggi particolari Confezione in scatola originale
Tempi di consegna 5-7 GIORNI
Termini di pagamento T/T
Capacità di alimentazione 1-99 pezzi/3-5 giorni
Dettagli
Marca Generale Elettrica Numero del modulo DS200NATOG2A
Catalogare MARCO V Prezzo di vendita $ 3500
Condizione in magazzino Origine U.S.A.
Tempi di consegna 3-5 giorni lavorativi Garanzia 1 anno
peso 1KG
Lasciate un messaggio
Descrizione di prodotto
DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board
Product Overview

The DS200NATOG2A NATO board is a Voltage Feedback Scaling Board designed for demanding industrial environments requiring high-precision voltage feedback control.

Key Features
  • Functional Acronym/Abbreviation: NATO
  • Part-Specific Manual: GEI-100225
  • Voltage Feedback Scaling Board
  • Number of Resistors: 4
  • Variant: G2
Technical Description

The core function of this item is to use a high-precision resistor network to attenuate high-voltage AC/DC signals from an SCR (thyristor rectifier) or IGBT bridge arm into low-voltage isolated feedback signals (typically 0-10 V DC) that the control system can process, thereby enabling the main control board to perform voltage closed-loop control and protection calculations.

The output signal from the circuit board is transmitted via five leads connected to a 20-pin ribbon connector. Additionally, several metal oxide varistors (MOVs) are included to prevent excessive output voltage in the event of a ribbon circuit break while input voltage is present. The load resistors required for operation are located on the included gate distribution board, not on the NATOG2A circuit board.

Application Fields
  • Power Generation: Control systems for gas turbines and steam turbines
  • Power Systems: Excitation and variable-frequency systems in power plants and substations
  • Industrial Drives: High-power variable-frequency drives and DC speed control systems (such as the DC2000/FC2000 series)
  • Process Industries: Process control in the petroleum, natural gas, chemical, paper, and mining industries
Product Specifications
Brand Name General Electric
Model DS200NATOG2A
Catalog Mark V
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $3500
Warranty 12 months
Processing Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS
Compatible Systems
  • ABB: AC800M/DSQC/Bailey INFI 90
  • Bently Nevada: 3500/3300 system
  • GE: IC693/IC695/IC697/IC698/IC200/IC660/IC670/IS200/DS200 series
  • Honeywell: TDC 2000/TDC3000/TPS/Security systems
  • Schneider: Quantum 140 series
  • Siemens: MOORE/6ES5/6GK/6DD/6AR Series
  • Woodward: 505/505E/9905/2301D-ST series
  • Yokogawa: CS3000 system
  • Allen-Bradley: 1747/1746/1761/1763/1762/1766/1764/1769/1768/1756/1789/1794/1771/1785 series
