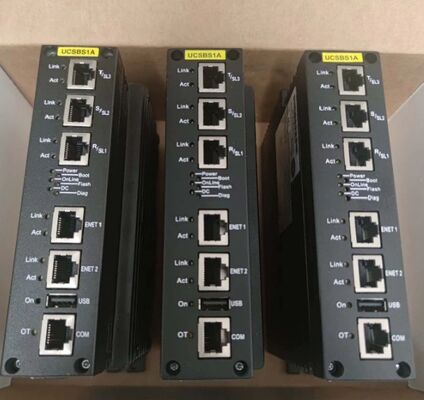

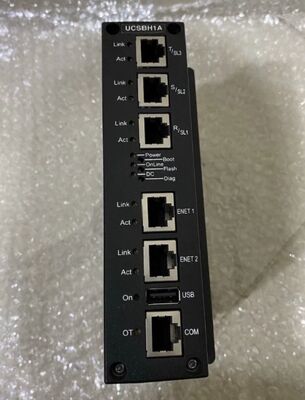

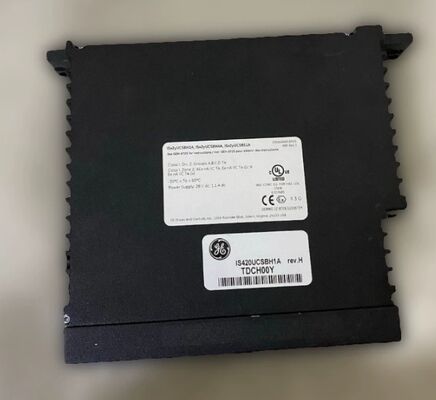

IS420UCSBH1A GE I/O UCSB Controller Module Mark VIe Ethernet Switch 6 Port

  • IS420UCSBH1A GE I/O UCSB Controller Module Mark VIe Ethernet Switch 6 Port
  • IS420UCSBH1A GE I/O UCSB Controller Module Mark VIe Ethernet Switch 6 Port
  • IS420UCSBH1A GE I/O UCSB Controller Module Mark VIe Ethernet Switch 6 Port
Luogo di origine U.S.A.
Marca GE
Certificazione Certificate of Origin
Numero di modello IS420UCSBH1A
Quantità di ordine minimo 1 pz
Prezzo $7000
Imballaggi particolari Confezione in scatola originale
Tempi di consegna 5-7 GIORNI
Termini di pagamento T/T
Capacità di alimentazione 1-99 pezzi/3-5 giorni
Dettagli
Marca GE Numero del modulo IS420UCSBH1A
Catalogare Marco VIe Prezzo di vendita $ 7000
Condizione in magazzino Origine U.S.A.
Tempi di consegna 3-5 giorni lavorativi Garanzia 1 anno
peso 1KG
Lasciate un messaggio
Descrizione di prodotto
IS420UCSBH1A GE I/O UCSB Controller Module Mark VIe Ethernet Switch 6 Port
Product Overview

The GE IS420UCSBH1A is a UCSB controller module specifically designed for the Mark VIe turbine control system. With its fanless and battery-free compact design, wide operating temperature range, ATEX certification for hazardous locations, and support for TMR triple-module redundancy, it is widely used in heavy industrial sectors.

Typical Applications
  • Power Generation: Control of gas turbines (9F, 9E, 7HA, etc.) and steam turbines; grid synchronization and power distribution management
  • Oil and Gas: Drilling control, refinery process control, pipeline monitoring
  • Water Treatment and Environmental Protection: Data acquisition and process control in water treatment plants
  • Metallurgy: Automated control of metallurgical processes
  • Transportation: Auxiliary propulsion control for marine propulsion systems
Technical Specifications
Product Type UCSB Controller Module
Operating System QNX Neutrino real-time multitasking operating system
Processor Architecture x86-based Intel EP80579 embedded processor
Execution Speed Approximately 100,000 ladder steps/block logic per second
Clock Synchronization IEEE 1588, accuracy ±100 microseconds
Supply Voltage 18-30 V DC (nominal 24-28 V DC)
Maximum Rated Current 1.5 A DC
Typical Power Consumption 15.6 W (nominal), peak approx. 26.7 W
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Mounting Panel mount (vertical airflow through heat sink must be ensured)
Protection Rating IP65 (I/O connections)
Cooling Method Fanless natural convection cooling
Power Supply Built-in power supply
Application Example

In petrochemical plants, the IS420UCSBH1A is used for anti-surge control in centrifugal compressors. Through communication with a remote diagnostic center, GE MyFleet services provide early warnings of potential failures, thereby reducing unplanned downtime. The module also supports seamless integration with the EX2100e excitation control system and the LS2100e load control system, providing a unified control platform.

IS420UCSBH1A GE I/O UCSB Controller Module Mark VIe Ethernet Switch 6 Port 0
Product Details
Brand Name General Electric
Model IS420UCSBH1A
Catalog Mark VIe
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin USA
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $7000
Warranty 12 months
Lead Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS
Compatible Systems
  • ABB: AC800M/DSQC/Bailey INFI 90
  • Bently Nevada: 3500/3300 system
  • GE: IC693/IC695/IC697/IC698/IC200/IC660/IC670/IS200/DS200 series
  • Hoeywell: TDC 2000/TDC3000/TPS/Security systems
  • Schneider: Quantum 140 series
  • Semens: MOORE/6ES5/6GK/6DD/6AR Series
  • Woodward: 505/505E/9905/2301D-ST series
  • Yokogawa: CS3000 system
  • Alen-Bradley: 1747/1746/1761/1763/1762/1766/1764/1769/1768/1756/1789/1794/1771/1785 series
