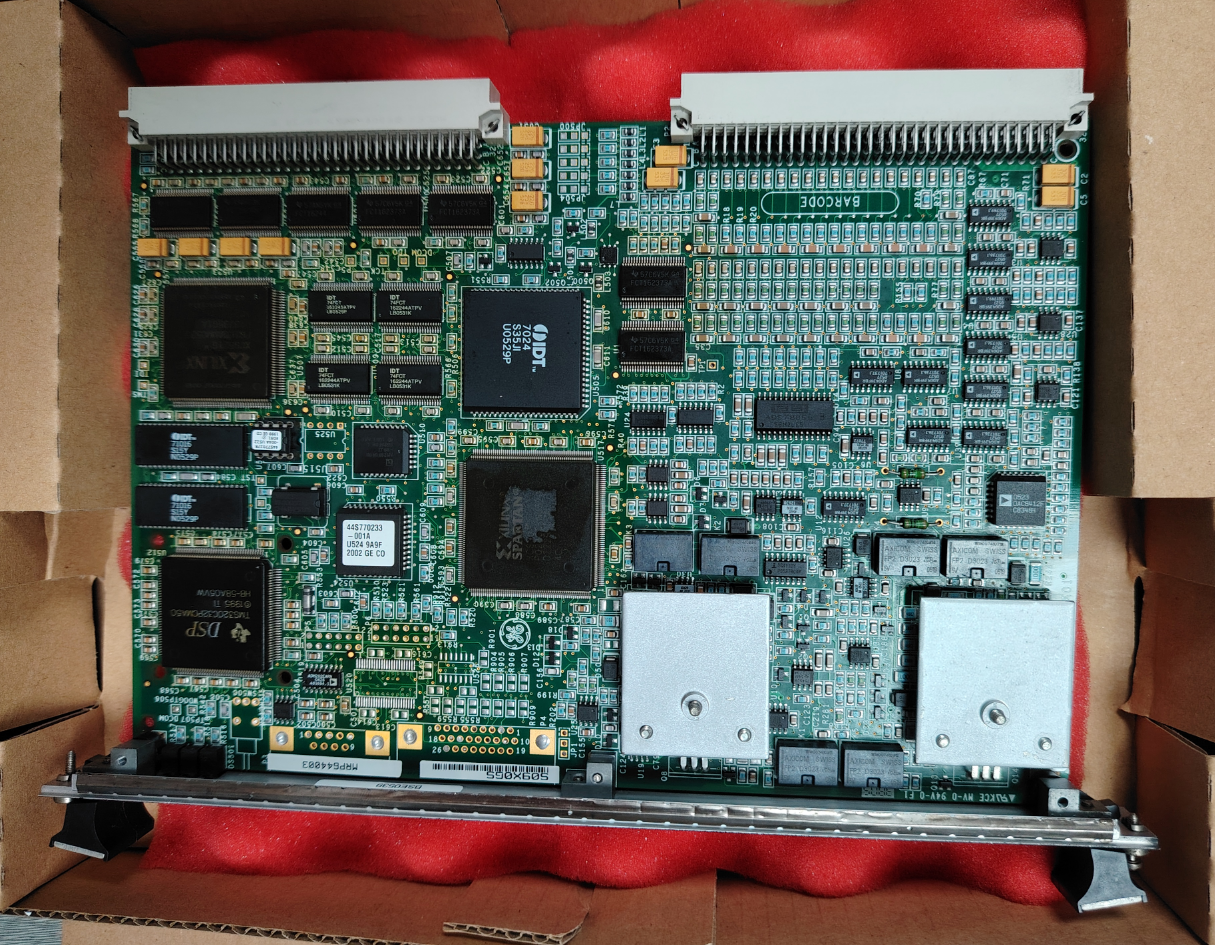

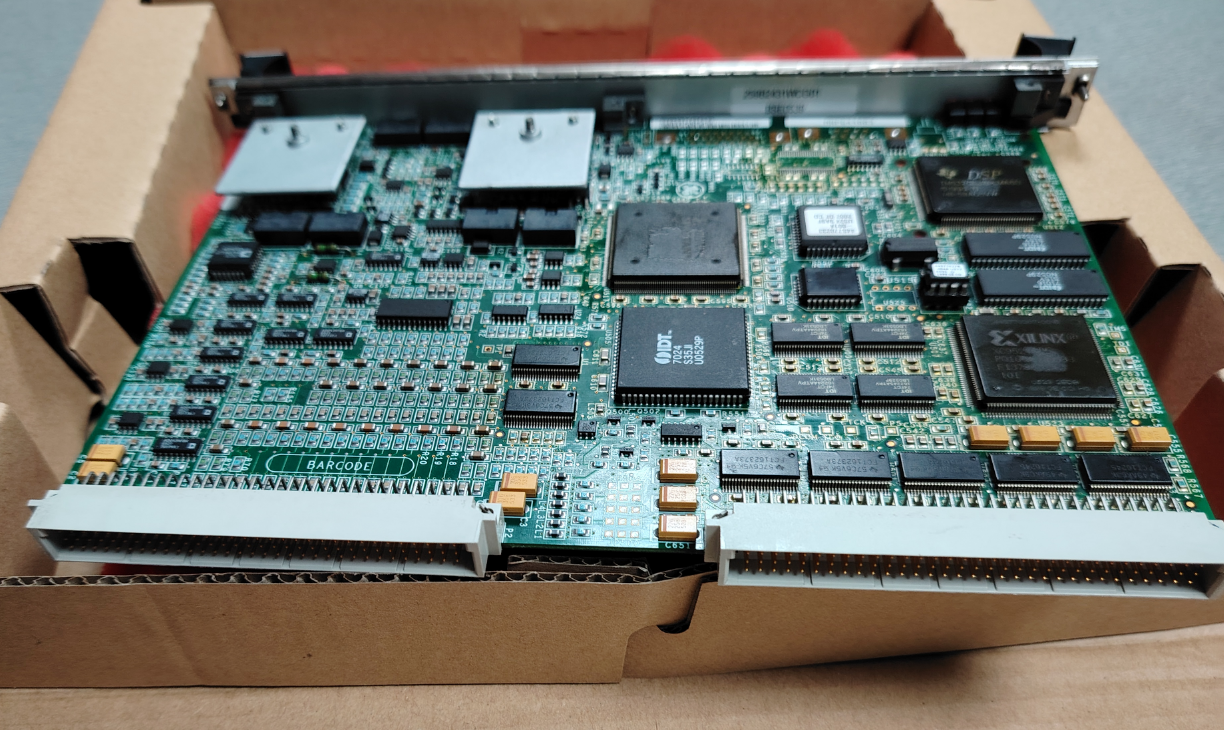

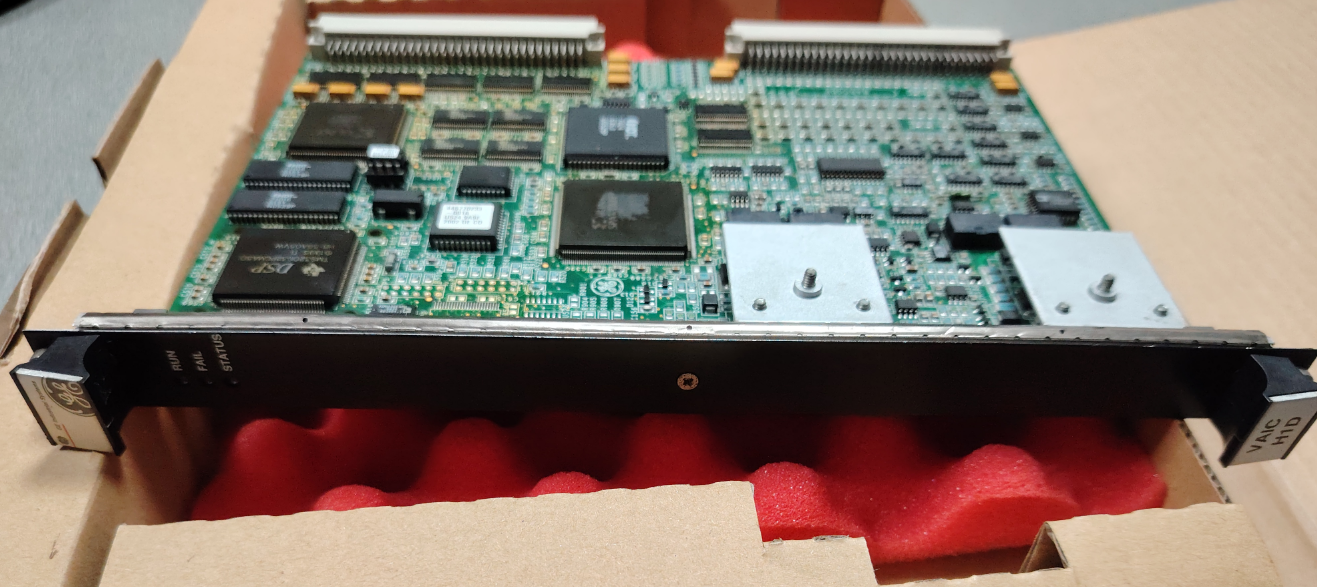

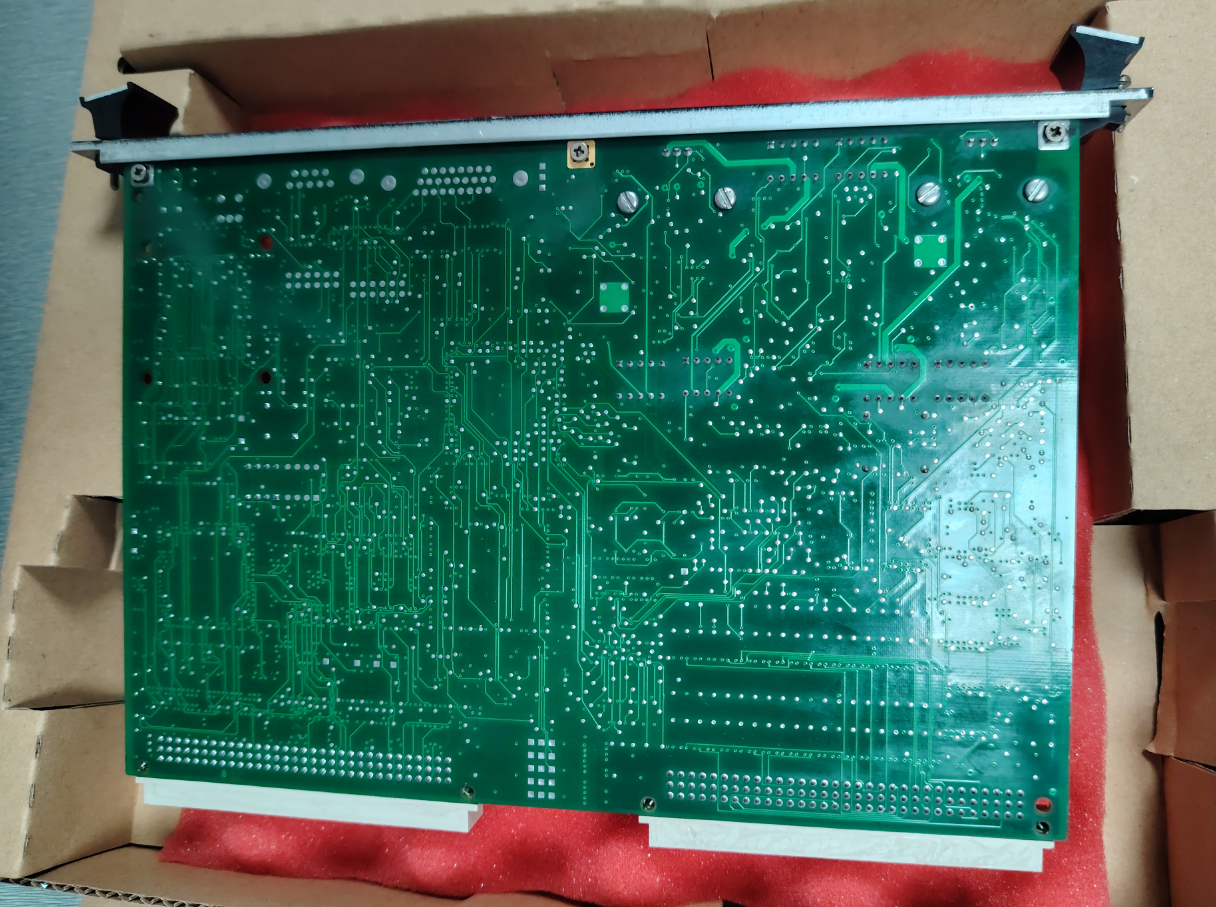

IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems

  • IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems
  • IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems
  • IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems
  • IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems
  • IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems
Luogo di origine U.S.A.
Marca GE
Certificazione Certificate of Origin
Numero di modello IS200VAICH1D
Quantità di ordine minimo 1 pz
Prezzo $1400
Imballaggi particolari Confezione in scatola originale
Tempi di consegna 5-7 giorni
Termini di pagamento T/T
Capacità di alimentazione 1-99 pezzi/3-5 giorni
Dettagli
Marca GE Numero del modulo IS200VAICH1D
Catalogare Mark VI Prezzo di vendita $1400
Condizione In magazzino Origine U.S.A.
Tempi di consegna 3-5 giorni lavorativi Garanzia 1 anno
Peso 1KG
Lasciate un messaggio
Descrizione di prodotto
IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems
Product Overview

The IS200VAICH1D is a dedicated VME-bus analog input card designed for GE Mark VI steam turbine control systems, providing reliable, high-precision analog signal acquisition for turbine speed, pressure, temperature, vibration, and generator electrical parameters.

As a critical component of the Industrial Steam Turbine Control (ISTC) architecture, this card enables precise, real-time analog signal acquisition from field sensors, supporting reliable turbine operation, monitoring, and protection.

Key Features
  • Analog Inputs: Up to 20 (base) + optional expansion
  • Input Ranges: 4-20 mA, 0-1 mA, ±5 V, ±10 V
  • Input Impedance: 250 Ω (current), 5 kΩ (0-1 mA), >100 kΩ (voltage)
  • Resolution: 12-16 bit (depending on configuration)
  • Isolation: Channel-to-bus isolated
  • Power Supply: +5 V / +24 V from backplane
IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems 0
Typical Applications
Speed control & overspeed protection Inlet / exhaust / extraction pressure closed loop control
Generator voltage, current, MW, VAR, power factor monitoring Vibration, thrust, eccentricity, and differential expansion monitoring
Lube oil, condenser, gland seal, and auxiliary system analog acquisition Retrofit of Mark I / Mark II to Mark VI control systems
IS200VAICH1D GE Mark VI VME Analog Input Card Turbine Control Systems 1
Application Example

A certain gas-fired combined-cycle power plant uses the IS200VAICH1D module to monitor key data such as the turbine inlet temperature and exhaust temperature of the gas turbine in real time, providing support for combustion optimization. As a result, the system's response time has been improved by 40%, temperature control deviation has been reduced to within ±1°C, and the unit's thermal efficiency has increased by 2%.

Product Specifications
Brand Name General Electric
Model IS200VAICH1D
Catalog Mark VI
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin USA
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $1400
Warranty 12 months
Lead time 3-5 work days
Courier partners DHL, UPS, TNT, FedEx and EMS
Documentation

GE Mark VI Datasheet
