IS200ESYSH1A GE EX2100e System Interface I/O Board

  • IS200ESYSH1A GE EX2100e System Interface I/O Board
  • IS200ESYSH1A GE EX2100e System Interface I/O Board
  • IS200ESYSH1A GE EX2100e System Interface I/O Board
  • IS200ESYSH1A GE EX2100e System Interface I/O Board
  • IS200ESYSH1A GE EX2100e System Interface I/O Board
Luogo di origine U.S.A.
Marca GE
Certificazione Certificate of Origin
Numero di modello IS200ESYSH1A
Documento Mark VIe and Mark VIeS.pdf
Quantità di ordine minimo 1 pz
Prezzo $6000
Imballaggi particolari Confezione in scatola originale
Tempi di consegna 5-7 giorni
Termini di pagamento T/T
Capacità di alimentazione 1-99 pezzi/3-5 giorni
Dettagli
Marca GE Numero del modulo IS200ESYSH1A
Catalogare Altri tipi di prodotti Prezzo di vendita 6000 dollari.
Condizione In magazzino Origine U.S.A.
Tempi di consegna 3-5 giorni lavorativi Garanzia 1 anno
Peso 1KG
Lasciate un messaggio
Descrizione di prodotto

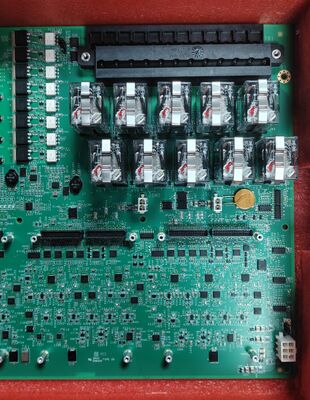

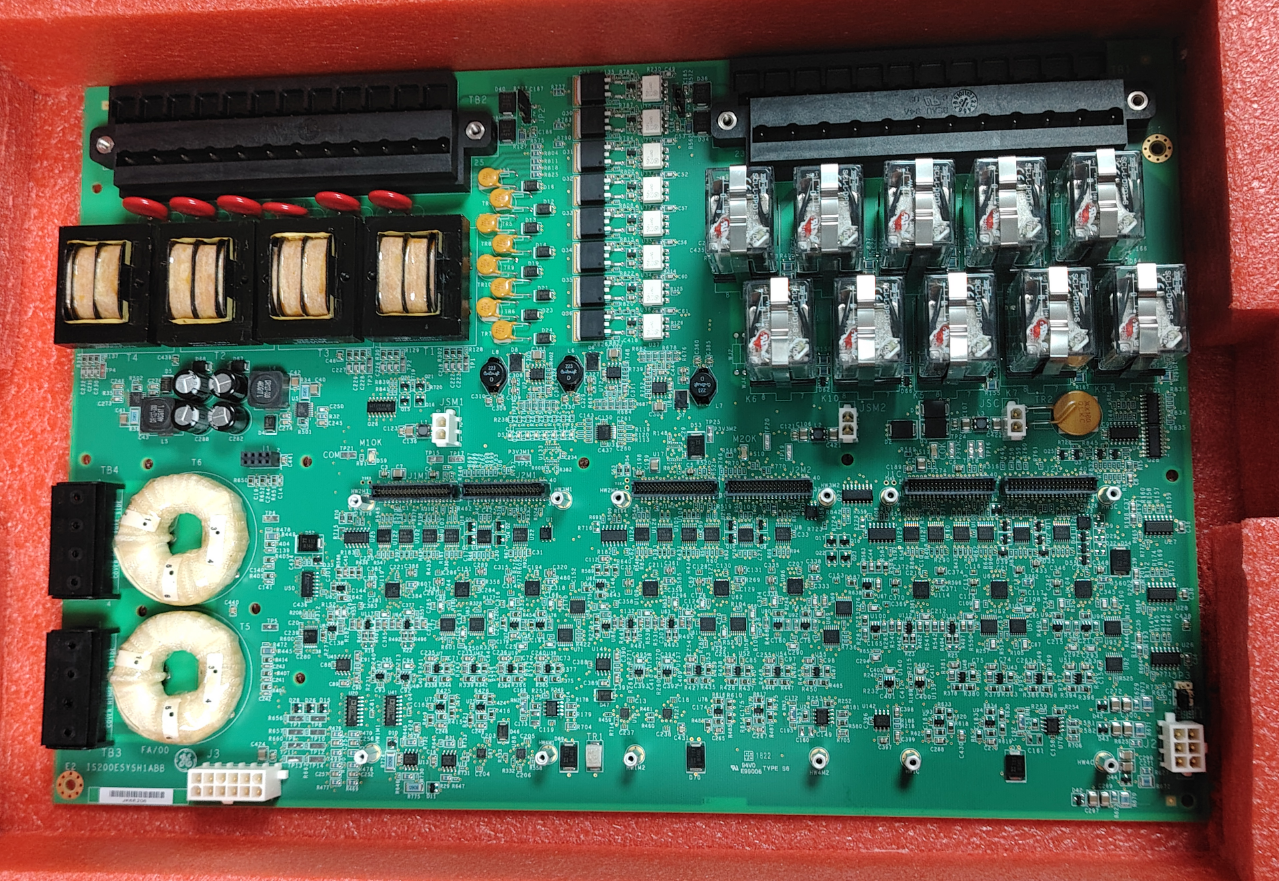

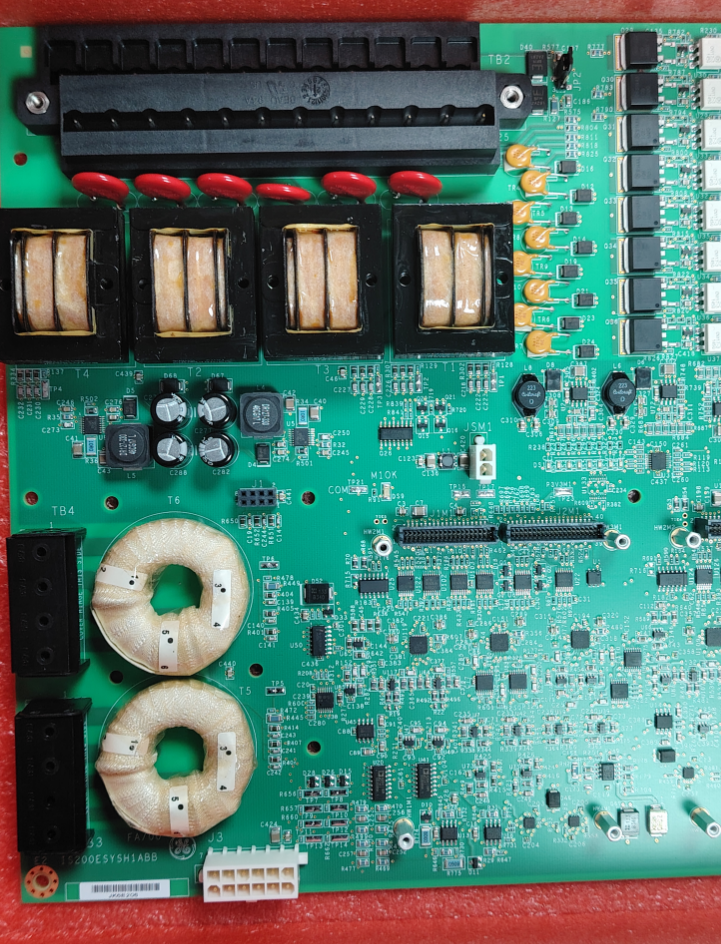

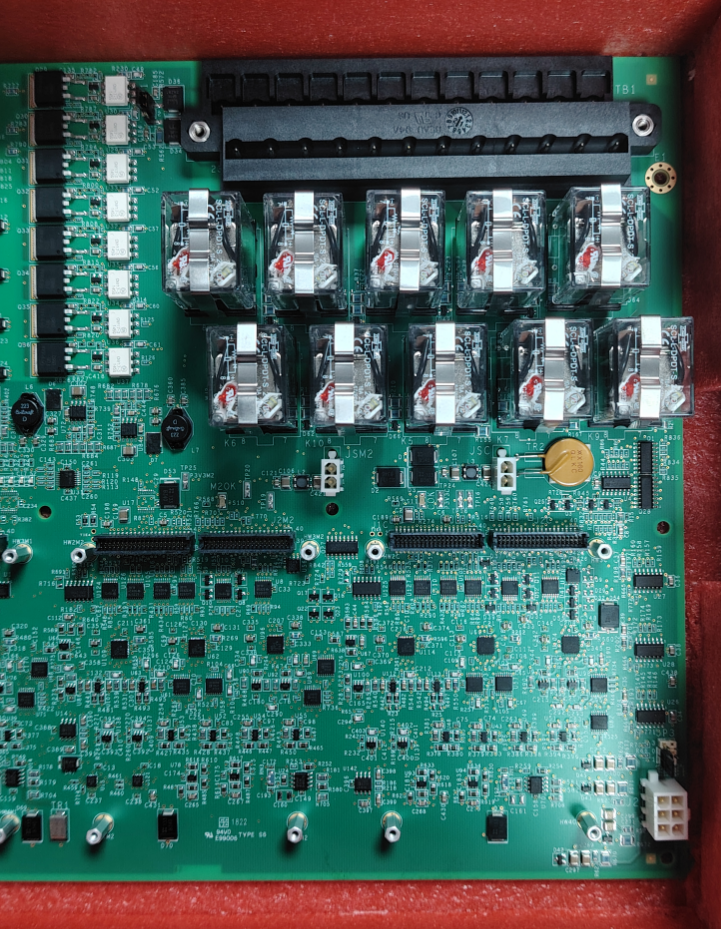

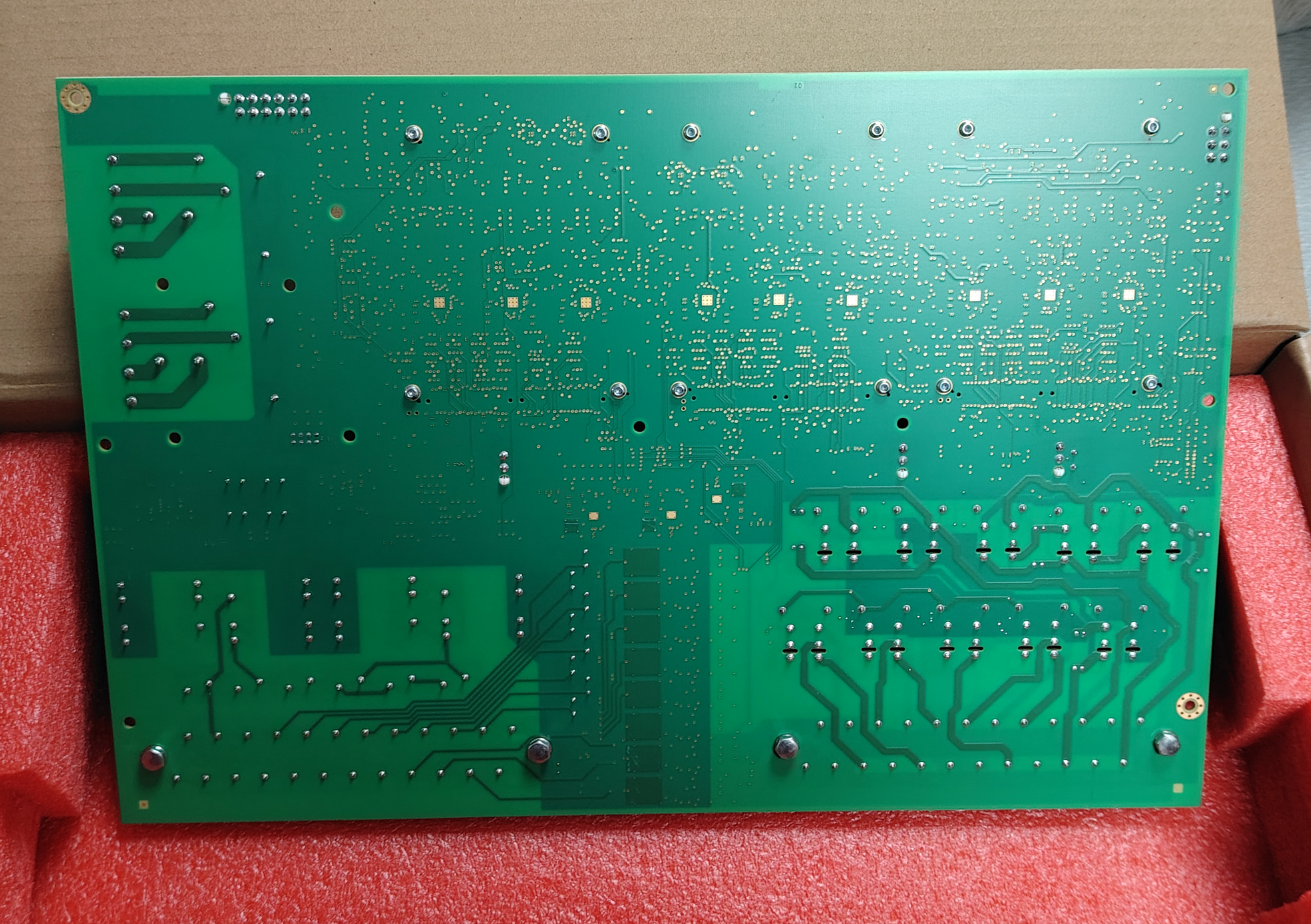

IS200ESYSH1A GE EX2100e System Interface I/O Board
The IS200ESYSH1A is a system interface board designed by General Electric (GE) for the EX2100e excitation control system. As a core interface component, this model effectively connects the excitation controller to field devices such as generator PT/CTs, DCS, and trip circuits, making it an indispensable key interface component in large gas turbine excitation systems.
Technical Specifications
  • Board Description: Excitation Control System I/O Interface Module
  • Board Type: TMR System I/O, Generator Power Sampling Interface Board
  • Group: H1
  • Operating temperature: -40°C to +70°C
  • Ambient humidity: 5% to 95% RH (non-condensing)
  • Sub-board Interface: Supports HSSL/HSLA expansion terminal boards
Installation and Maintenance Precautions
  • The polarity of the PT/CT connections must be correct; reverse connections will result in measurement errors and may even trigger false protection trips.
  • The module supports the EX2100e system; interface definitions may differ from those of earlier EX2100 systems. Verify that the system versions are compatible before installation.
  • It is recommended to store the board in an anti-static storage case and to handle and use it under the recommended environmental conditions.
IS200ESYSH1A GE EX2100e System Interface I/O Board 0
Case Study
At an industrial park, the excitation cabinet of a private power plant was installed near the generator unit. Strong electromagnetic interference at the site caused frequent data packet loss in the older-generation communication cards. Subsequently, the industrial park installed the IS200ESYSH1A. Thanks to its triple electrical isolation design (≥1.5 kVdc) and built-in isolation transformer, this card successfully blocked electromagnetic crosstalk, ensuring stable data transmission.
Product Details
Brand Name General Electric
Model IS200ESYSH1A
Catalog EX2100e
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin USA
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $6000
Warranty 12 months
Lead Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS
