4119A Invensys Triconex

  • 4119A Invensys Triconex
  • 4119A Invensys Triconex
  • 4119A Invensys Triconex
  • 4119A Invensys Triconex
Luogo di origine Stati Uniti
Marca Invensys Triconex
Certificazione Certificate of Origin
Numero di modello 4119A
Quantità di ordine minimo 1 pz
Prezzo $1800
Imballaggi particolari Fabbrica nuova e originale, imballaggio in scatola individuale
Tempi di consegna 2-3 giorni lavorativi
Termini di pagamento T/T
Capacità di alimentazione 1-99 pezzi/3-5 giorni
Dettagli
Marca Invensys Triconex Numero del prodotto 4119A
Prezzo di vendita - 1800 dollari. Condizione In magazzino
Origine del prodotto Stati Uniti Porto di spedizione Xiamen
Tempi di consegna 2-3 giorni lavorativi Garanzia 1 anno
Peso 1KG
Lasciate un messaggio
Descrizione di prodotto

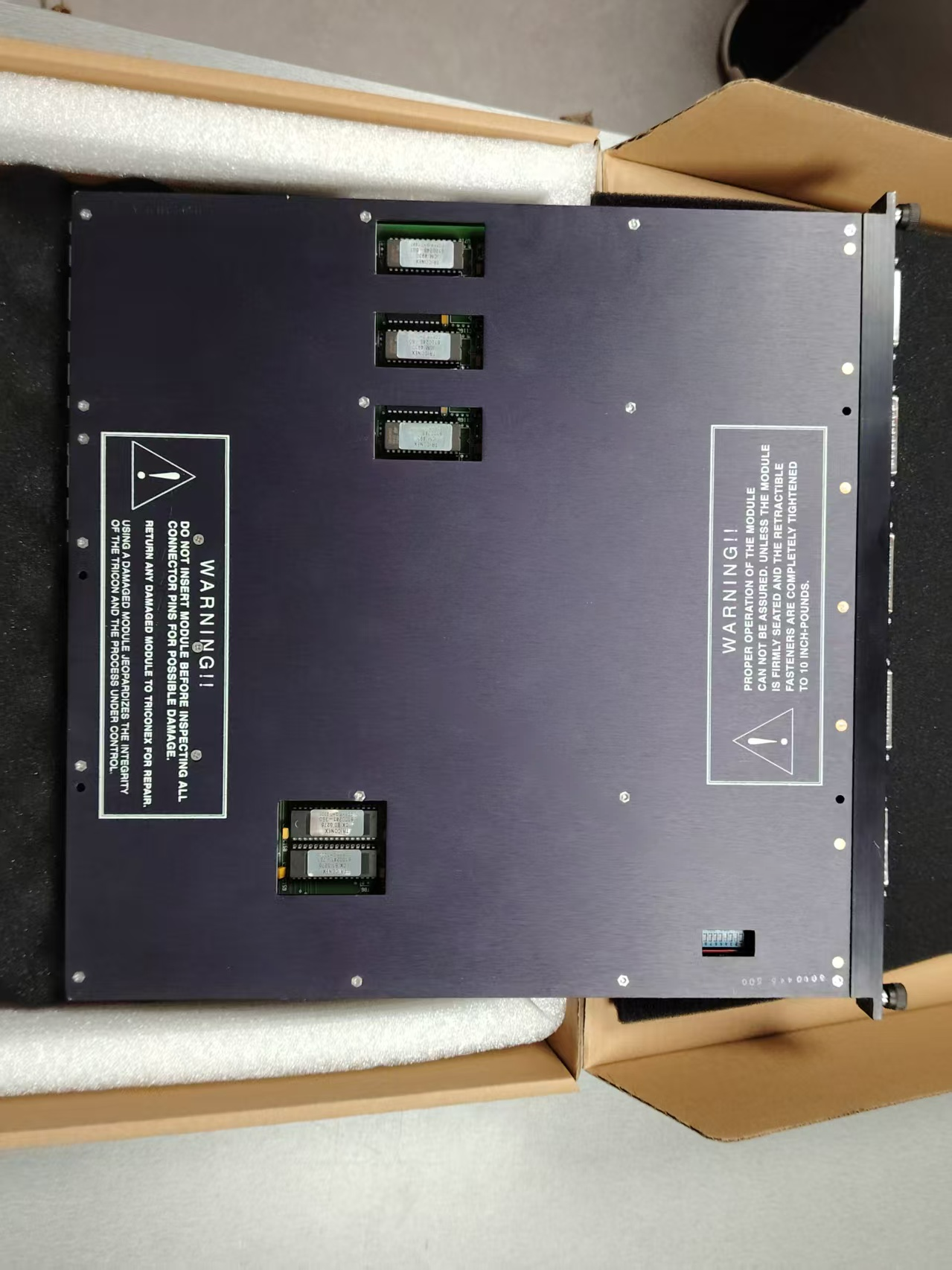

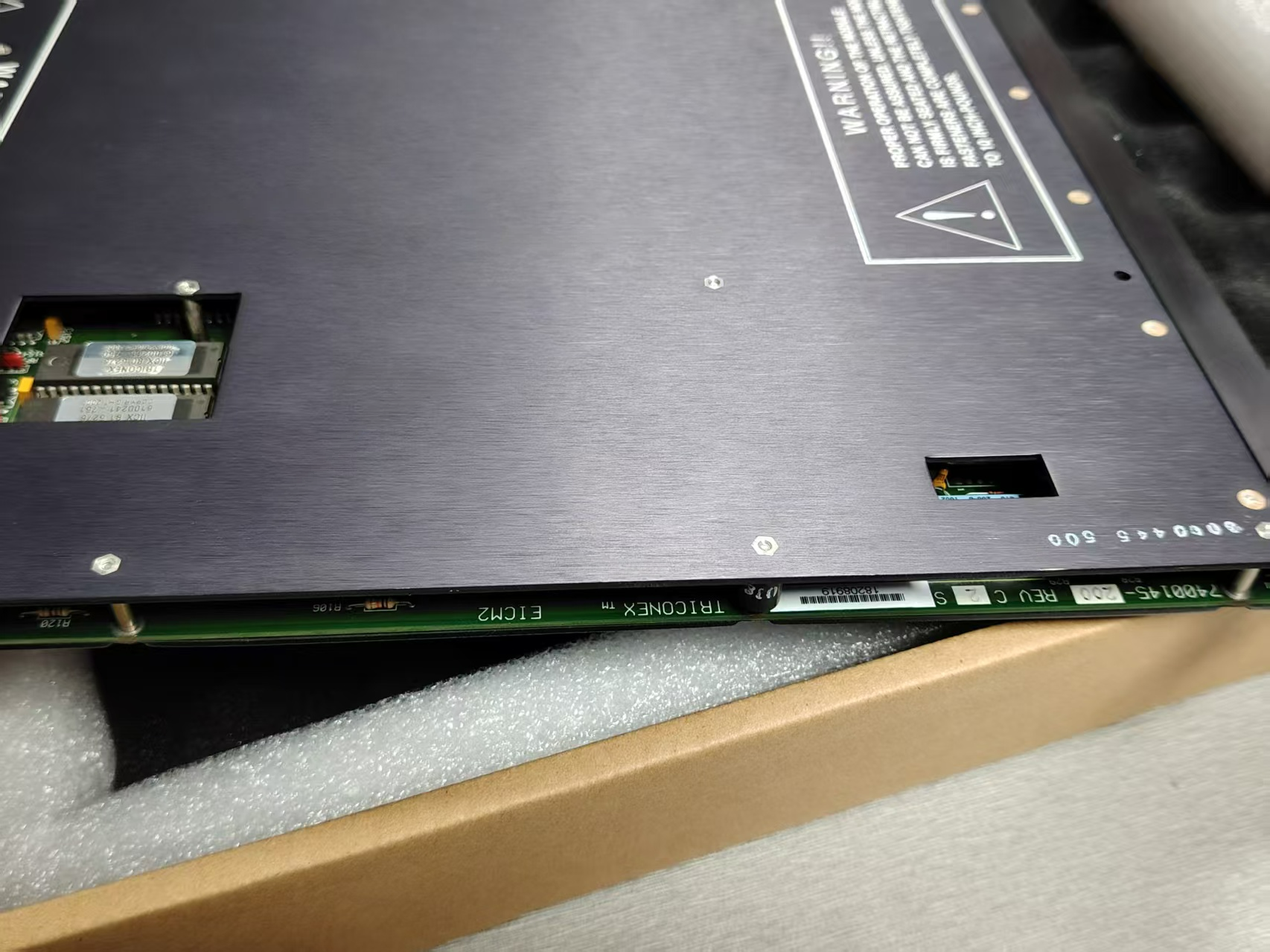

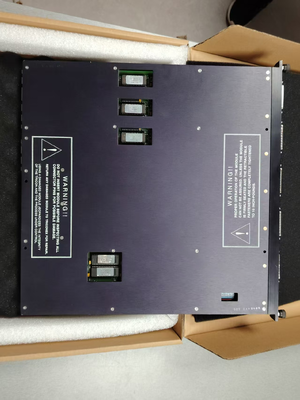

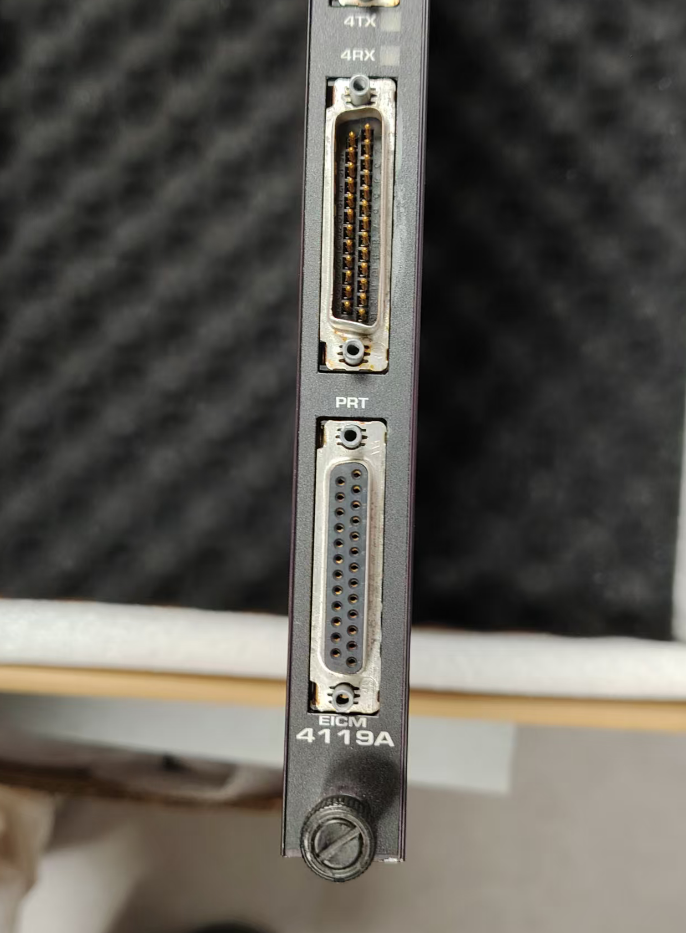

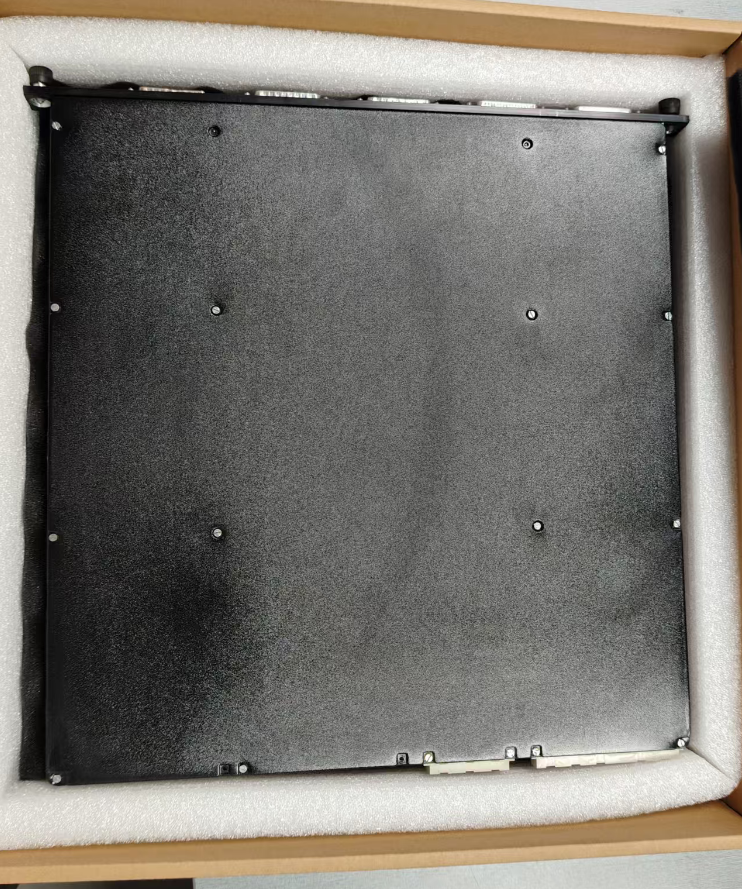

4119A Invensys Triconex
Product Overview

The TRICONEX 4119A is an Enhanced Intelligent Communication Module (EICM), an essential communication component in the Tricon Safety Instrumented System (SIS). This module is specifically designed for the Tricon SIS and is primarily used to facilitate data communication between Tricon controllers and external devices.


This module is a standard communication module for the Tricon v9, v10, and Trident platforms and meets the SIL 3 safety level requirements of the IEC 61508 standard. It plays a critical role in emergency shutdown, safety monitoring, and process control applications across industries such as petroleum, petrochemicals, power generation, and metallurgy. Its hot-swap capability and comprehensive diagnostic functions further ensure the safety and availability of critical industrial processes.

TRICONEX 4119A Enhanced Intelligent Communication Module
Key Features
  • Compatible Systems: Tricon v9, v10, Trident SIS
  • Product Type: Enhanced Intelligent Communication
  • Safety Level: SIL 3 (compliant with IEC 61508)
  • Serial Ports: 4, configurable as RS-232/RS-422/RS-485
  • Parallel Port: 1, Centronics interface
  • Port Isolation: 500 V DC
  • Communication Rates: 1200, 2400, 9600, 19200 bps
  • Total Bandwidth: 57.6 kbps (total for all 4 serial ports)
  • Supported Protocols: Modbus RTU/ASCII, TriStation
  • Operating Temperature: -40°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Relative Humidity: 5% to 95% RH (non-condensing)
  • Mounting: Tricon system rack mounting
EICM Specifications
TRICONEX 4119A EICM Technical Specifications
Product Details
Brand Name Invensys Triconex
Model Power Modules
Ordering Information 4119A
Catalog Tricon Systems
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 30 cm x 20 cm x 25 cm
Country of Origin United States (USA)
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $1800
Warranty 12 months
Lead Time 3-5 work days
Real-World Application Example

At a certain refinery, the 4119A module was installed in a logic slot on the main rack and connected via an RS-485 interface to the TriStation 1131 engineering station in the central control room. It is responsible for uploading the status of thousands of I/O points on the field to the control system in real time.

TRICONEX 4119A real-world installation example
Frequently Asked Questions
Does the 4119A support hot-swapping?

The 4119A does not support the hot-spare feature. However, a faulty 4119A module can be replaced while the controller is online, without the need for downtime.

How many 4119A modules can be installed in a single Tricon system?

A single Tricon system supports up to 2 4119A modules, which must be installed in the same logical slot.

What is the total communication bandwidth of the 4119A?

The four serial ports of the 4119A support a combined data rate of 57.6 kbps. Each port can be independently configured to 1200, 2400, 9600, or 19200 bps.

Technical Documentation
Download Triconex System Documentation (PDF)
